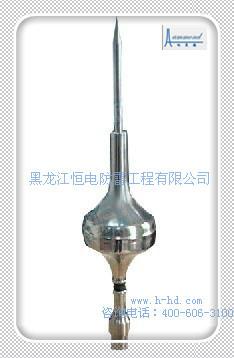

IEC 62305-3 Stainless Steel Lightning Rod On Buildings Outdoor

Stainless Steel Lightning Rod French original ESE4500 lightning rod
outdoor

"HDE" through the combination of pulse transformer and oscillator,
to achieve strict control of frequency and amplitude of
high-voltage signal emission technology; its energy from the
electrostatic field and electromagnetic field, and transformed into
a high-voltage signal transmitted to the tip of the needle,
generating a large number of electric ions, this function makes the
"HDE" issued by the upstream lead wire tens or even hundreds of
meters away from the lightning rod, with the downstream lead wire
from the lightning cloud to pick up the flash, thereby expanding
Lightning rod protection range.

This excitation device integrated in the air terminal is designed
to increase the excitation distance and thus generate the
ascending tracer earlier(regarding to an ascending tracer naturally
emitted by a simple rod.
All of our early streamer emission systems are tested in compliance
with NF C 17-102 standard,edition September 2011.

Protection systems	Standards
Early streamer emission air terminal	- France: NF C 17-102 (September 2011 edition) - Argentina: IRAM 2426 - Spain: UNE 21186 - Macedonia: MKS N.B4 810 - Portugal: NP 4426 - Romania: I-20 - Slovakia: STN 34 1391 - Serbia: JUS N.B4.810
Single rods air terminals	IEC 62 305-3
Meshed cages	IEC 62 305-3
Stretched wires	IEC 62 305-3

Specification

item	value
Place of Origin	China
Model Number	HD-4500
Material	Stainless Steel
Type	High-rise Building
Function	Lighting Protection
Application	High Building
CERTIFICATE	ISO9001:2008
Use for	High-rise Building Lightning Protection
Early discharge time	45µs

Installation Guidelines

3 main components are part of a lightning protection system. .The
capturing device with its supporting mast and fixings.

The down conductor composed of one or several tin-ned copper tape
with section in compliance with stan-dards in force,designed to
flow the lightning current of the lightning conductor to the
earthing system.This conductor will usually run outside the
structure.Each fixing should allow an eventual conductor
dilatation.Bend radius have to be inferior to 0.2
meters.Metalli-cal masses situated in the zone of separation
calculated beforehand will be interconnected equipotentially to the
lightning conductor.Each down conductor will be equipped at the
bottom with a control junction and a 2 meter-high mechanical
protective tube.

The earthing system with an adapted form in com-pliance with
standards in force has for aim to diffuse the lightning current to
the ground.An inspection pit will be installed to do the
equipotential connection with the nearest electrical earth netword
of the building. Installation quality of a lightning system is an
impor-tant element ofr the efficiency of a lightning protection
system. For each installation and in most of cases it will be
bet-ter to start with the installation of the earthing
sys-tems,then as direct as possible channels of each down
conductor,then finish with the lightning conductor and roof circuit
installation.
