    275V Power Board 6 Outlet

    Lightning Protection For Bank Savings Offices, Offices, Monitoring Rooms And Various Types Of Electrical Equipment

    Overview

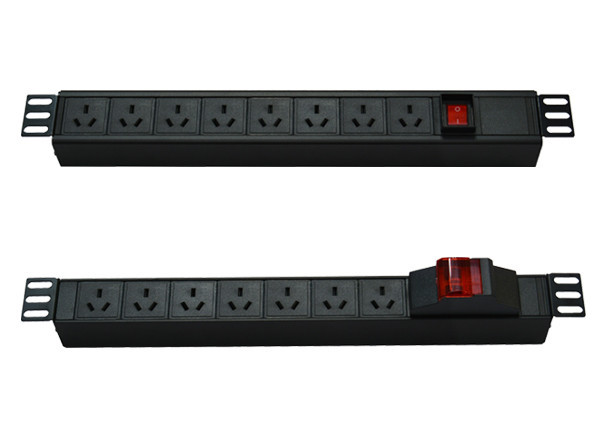

    EPPJ10MS-8 rack-mounted power supply lightning protection socket is designed for rack-mounted power outlets with surge protection units installed on standard cabinets. Mainly used in the cabinet communications equipment, monitoring terminals and other important small distribution equipment refined lightning protection, to avoid damage to equipment caused by overvoltage and lightning induction. Use places such as: computer networks, precision equipment, small computer rooms, bank savings offices, offices, monitoring rooms and various types of power equipment power protection; equipped with multiple multi-purpose output jacks with fault indication.

    Adopt precision protection circuit, core components selected from international ****, stable performance.

    Large through-current capacity, low port clamp voltage, and sensitive response.

    Easy installation, no special maintenance, long service life.

    Aging thermal decoupling and short-circuit overcurrent decoupling, with visual warning indicator.

    Technical parameters


    Model

    EPPJ10MS-8

    Rated working voltage Un

    220VAC

    Rated working current

    16A

    **** Continuous working voltage Uc

    275VAC

    Nominal discharge current In(8/20μs)

    3kA

    **Maximum discharge current Imax(8/20μs)

    6.5kA

    Voltage protection level rise [L-PE/N-PE/]

    1.0kV/1.0kV

    Enclosure material

    Black aluminum alloy and flame retardant plastic

    Dimension specification

    440mm×65mm×45mm

    Functional features

    Independent jack introduction structure, flame retardant and insulated

    Working environment conditions

    Temperature range: -40℃~+70℃ Humidity range. 30%~85% (25℃)
